2000-5377/101-000 | WAGO

3-wire actuator supply terminal, push-in connection, 0.14-1.5 mm², 4 pole, 13.5 A, orange, 2000-5377/101-000

Order No.: 43P1020
EAN: 4055143480284
MPN:
2000-5377/101-000
Series: TOPJOB S

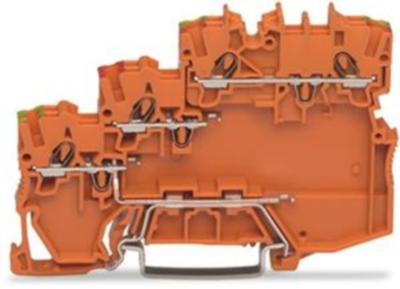

2000-5377/101-000 WAGO Series Terminals Image 1
2000-5377/101-000 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
11.3526 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
11.35 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3526 €
10 pcs.
10.2102 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor/actuator terminal block, 2000-5377/101-000, WAGO

3-conductor sensor/actuator terminal block, for NPN-(low-side) switching actuators, with ground contact, with colored conductor entries, 1 mm², Push-in CAGE CLAMP, 1,00 mm², orange.

Technical specifications
Colour orange
AWG cross-section AWG 24 to 16
Rated current 13.5 A
Width 7 mm
Height 81.1 mm
Length 52.4 mm
Cable cross-section 0.14-1.5 mm²
Number of terminals 8
Pin number 4 pole
Version 3-wire actuator supply terminal
Connection push-in connection
Degree of soiling 3
Rated Voltage 250 V
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
