2000-3257 | WAGO
Protective conductor/feed-through/feed-through terminal block, spring-clamp connection, 0.14-1.5 mm², 3 pole, gray, 2000-3257
Unit Price (€ / pc.)
6.5688 € *
Standard delivery time from the manufacturer is: On Request

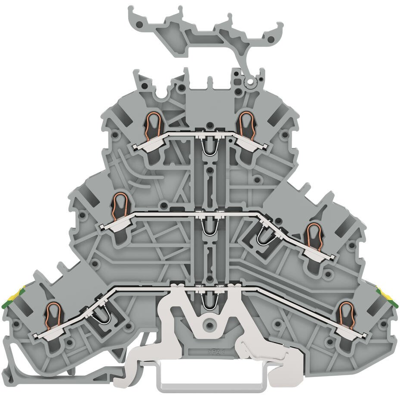

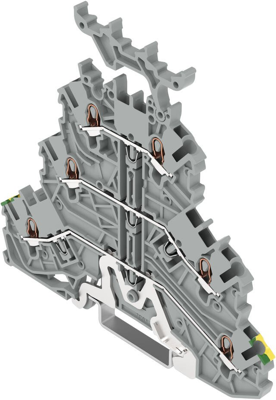

Terminal block, 2000-3257, WAGO
Triple-deck terminal block, Ground conductor/through/through terminal block, 1 mm², PE/L/L, suitable for Ex e II applications, with marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 1,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Number of terminals | 6 | |

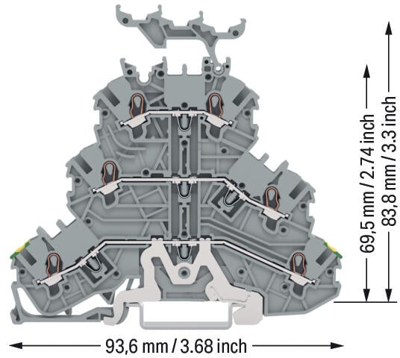

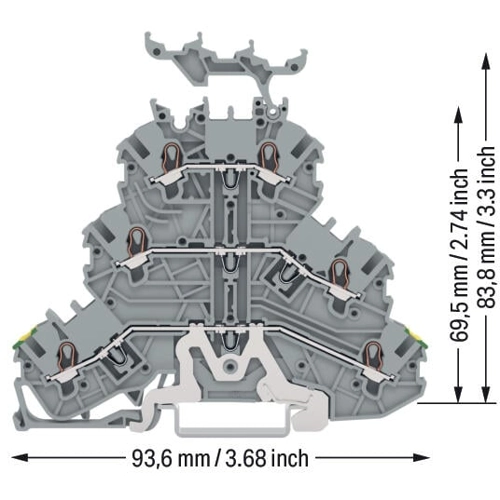

| Height | 93.6 mm | |
| Colour | gray | |
| Degree of soiling | 3 | |
| Cable cross-section | 0.14-1.5 mm² | |
| Version | Protective conductor/feed-through/feed-through terminal block | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24 to 16 | |
| Width | 3.5 mm | |
| Length | 83.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
