756-9206/040-000 | WAGO

Plug, M12, 4 pole, screw connection, angled, 756-9206/040-000

Order No.: 44P6168
EAN: 4050821114208
MPN:
756-9206/040-000
Series: 756

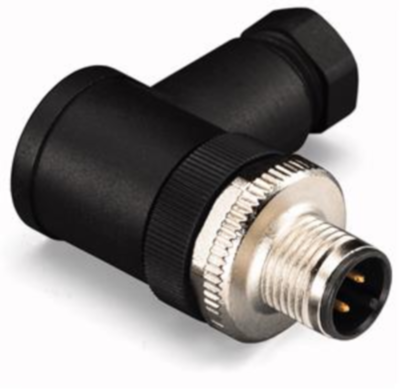

756-9206/040-000 WAGO Sensor-Actuator Connectors Image 1

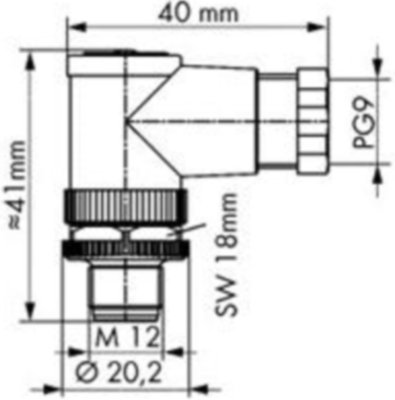

756-9206/040-000 WAGO Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.8274 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
14.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.8274 €

Sensor-actuator connector, 756-9206/040-000, WAGO

Features

  • Connection via spring clamp technology
  • Degree of protection: IP67
  • A-coded
Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP67
Assembly cable assembly
Coding A
contact surface gold-plated
Orientation angled
Contact connection screw connection
Thread size M12
Product type plug
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Imidazolidine-2-thione (2-imidazoline-2-thiol), Lead
SVHC free No
Date of RoHS guidelines 3/31/15
