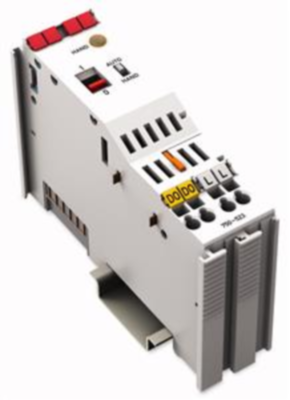

Relay output, 750-523, WAGO
1-channel relay output, AC 250 V, 16 A, Potential-free, 1 make contact.
Features

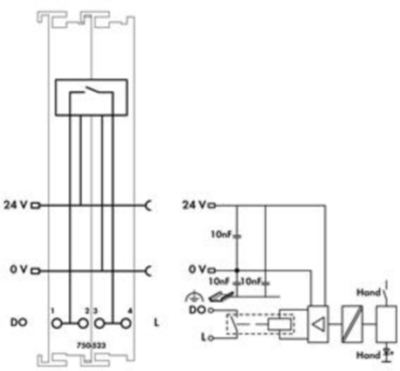

- This relay module switches a connected actuator or load. The 24 VDC supply is derived from the power jumper contacts to trigger the relays

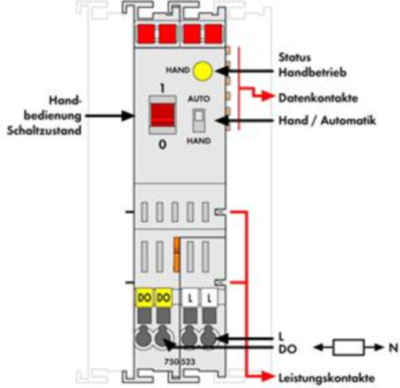

- The switched status of the relay is shown by the manual switch (1/0)
- The manual switch can also be used without 24 V supply to switch the output ON
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | digital relay module | |
| Contact type | 1 Form A (N/O) | |
| Number of outputs | 1 | |
| Control Voltage | 5 VDC | |
| Rated current | 16 A | |
| Switching Voltage (AC) | 440 V | |
| Assembly | DIN rail | |
| Width | 24 mm | |
| Height | 100 mm | |
| Depth | 67.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| SVHC free | No |
