750-517/040-000 | WAGO
WAGO 750-517/040-000
Unit Price (€ / pc.)
142.0622 € *
Standard delivery time from the manufacturer is: 5 Weeks

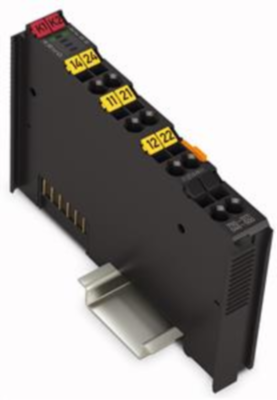

Relay output, 750-517/040-000, WAGO
2-channel relay output, AC 250 V, 1 A, 2 changeover contacts, Extreme.
Features
- This digital output module transmits control signals from the automation device to the connected actuators
- The internal system voltage triggers the relay
- The NO contacts are electrically isolated

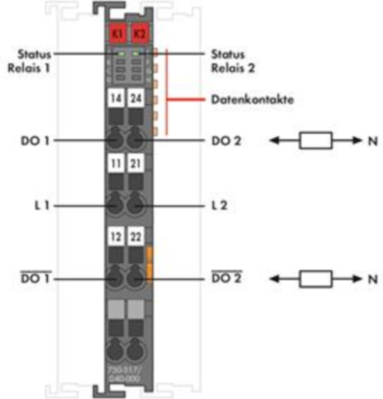

- The state of the relay is indicated by a LED
- Greater immunity to impulse voltages and electromagnetic interference
- Higher vibration and shock resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 67.8 mm | |
| Switching Voltage (DC) | 300 V | |
| Rated current | 1 A | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Width | 12 mm | |
| Contact type | 2 Form C (NO/NC) | |
| Switching Voltage (AC) | 250 V | |
| Number of outputs | 2 | |
| Control Voltage | 5 VDC | |
| Version | digital relay module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
