774-9994/206-302 | WAGO

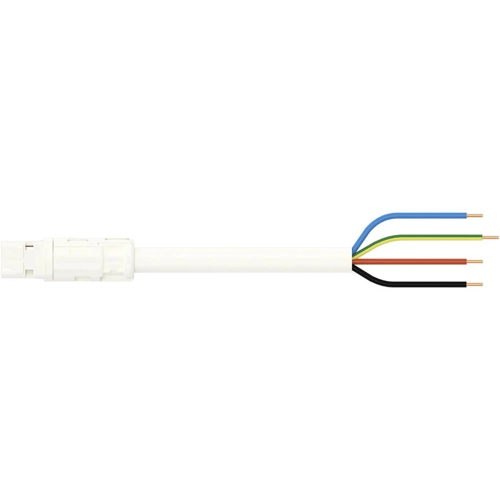

Connection cable, 3 m, plug straight to open end, 1.5 mm², 774-9994/206-302
Unit Price (€ / pc.)
17.8143 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9994/206-302, WAGO
Connecting line for power and signal transmission. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product fits into drill holes and conduits with diameters up to 20 mm.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for use in many general mains applications
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection line | |
| Cable cross-section | 1.5 mm² | |
| Connection 1 design | straight | |
| Connection (2) | open end | |
| Cable length | 3 m | |
| Connection (1) | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
