774-9994/206-201 | WAGO

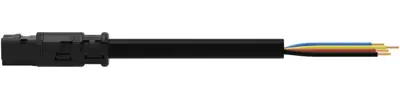

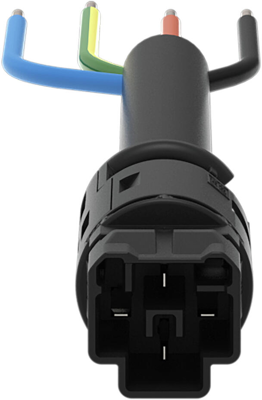

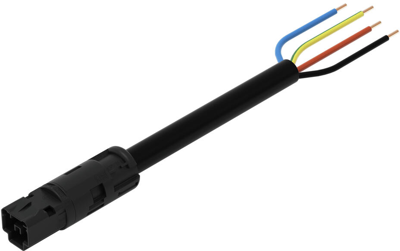

Connection cable, 2 m, plug straight to open end, 1.5 mm², 774-9994/206-201
Unit Price (€ / pc.)
15.9222 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9994/206-201, WAGO
This Connecting line for greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This product fits optimally into boreholes or conduits thanks to its design.
Features
- With A coding for a large number of applications
- Flexible installation to save space
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection line | |
| Connection (1) | plug | |
| Connection (2) | open end | |
| Cable length | 2 m | |
| Connection 1 design | straight | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
