774-9994/006-402 | WAGO

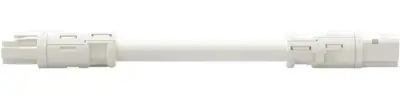

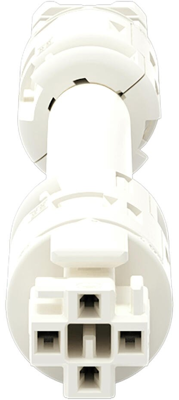

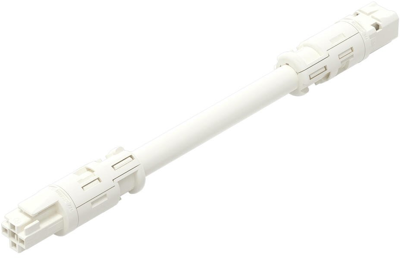

Connection cable, 4 m, socket straight to plug straight, 1.5 mm², 774-9994/006-402
Unit Price (€ / pc.)
22.848 € *
Standard delivery time from the manufacturer is: 5 Weeks
Pre-assembled interconnecting cable, 774-9994/006-402, WAGO
Connecting line with locking latch for power and signal transmission. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. It fits like a glove into conduits or boreholes due to its design.
Features
- Saves time, since no wiring is required at the construction site
- Suitable for any application
- Fast, secure installation
Technical specifications
| Cable length | 4 m | |
| Connection 2 design | straight | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
