774-9993/217-802 | WAGO

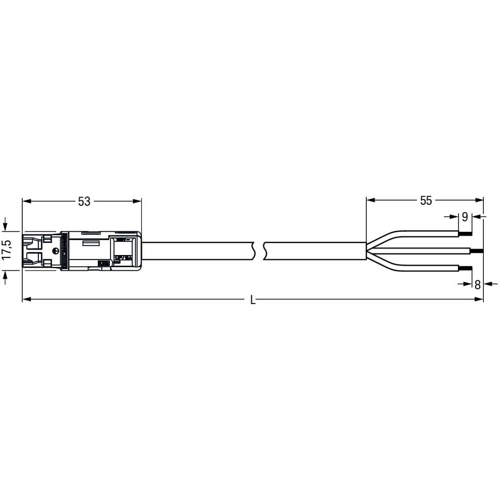

Connection cable, 8 m, plug straight to open end, 2.5 mm², 774-9993/217-802
Connection cable, 774-9993/217-802, WAGO
Connecting line for signal and power transmission. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
This pluggable installation connector can be used for a current load of up to 20 A. As a result, it can also be used for high power loads. This product offers a round design that is very good for use in conduits with an inner diameter of 20 mm, for example in construction of prefabricated houses. This product meets all the mandatory safety requirements of fire class E; therefore it can be used in areas where fire safety is relevant.
Features
- With A coding for a great number of applications
- Ready for immediate use
- Rapid, structured electrical installation
| Cable length | 8 m | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
