774-9993/217-701 | WAGO

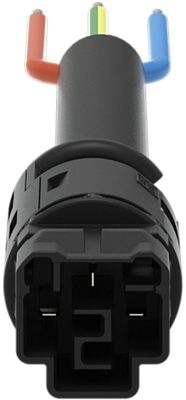

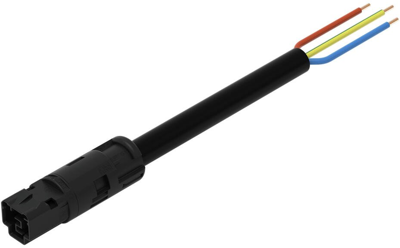

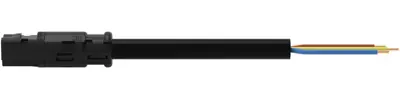

Connection cable, 7 m, plug straight to open end, 2.5 mm², 774-9993/217-701
Unit Price (€ / pc.)
33.2724 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9993/217-701, WAGO
This Connecting line for greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
This pluggable installation connector is used for electrical currents up to 20 A. Thus the product is especially suitable for high power loads. This product is suitable for drill holes and conduits with diameters up to 20 mm.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a large number of applications
- Rapid, structured electrical installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 7 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
