774-9993/207-102 | WAGO

Connection cable, 1 m, plug straight to open end, 2.5 mm², 774-9993/207-102

Order No.: 44P8444
EAN: 4055143523202
MPN:
774-9993/207-102
Series: WINSTA RD

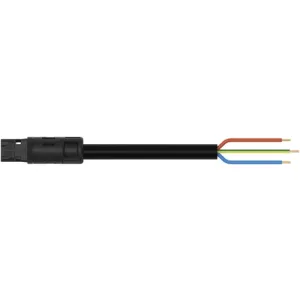

774-9993/207-102 WAGO Pre-assembled Connector Systems Image 1
774-9993/207-102 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
10.5910 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
10.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.5910 €

Connection cable, 774-9993/207-102, WAGO

Connecting line for power and signal transmission. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This pluggable installation connector can be used for electrical currents up to 20 A. Thus the product is ideally suitable for high power loads. This product meets all the mandatory safety requirements of fire class E; thus it can be used in domains where fire safety is relevant.

Features

  • Saves time, since no wiring is required at the construction site
  • With A coding for use in a large number of general mains applications
  • Ready for immediate use
  • Rapid, structured electrical installation
Technical specifications
Cable length 1 m
Coding A
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
