774-9993/117-702 | WAGO

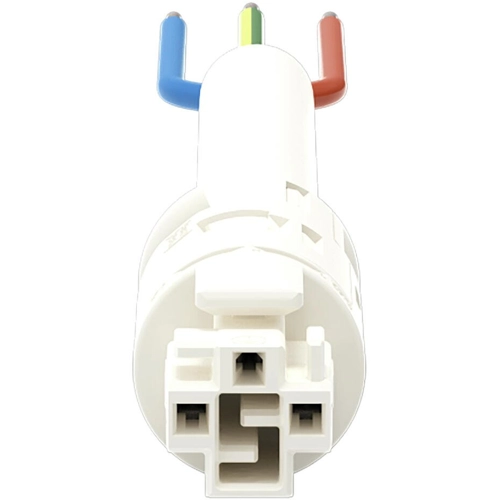

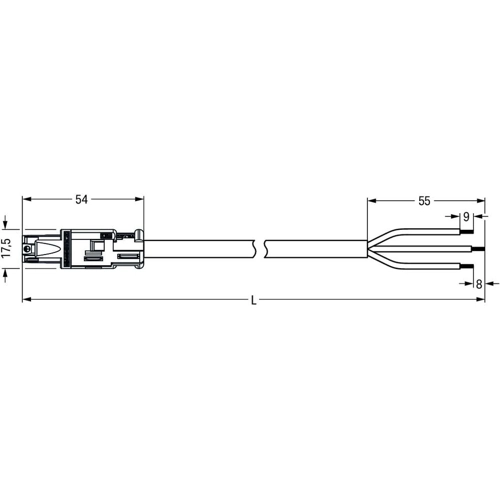

Connection cable, 7 m, socket straight to open end, 2.5 mm², 774-9993/117-702

Order No.: 44P8379
EAN: 4045454323349
MPN:
774-9993/117-702
Series: WINSTA RD
774-9993/117-702 WAGO Pre-assembled Connector Systems Image 1
774-9993/117-702 WAGO Pre-assembled Connector Systems Image 2
774-9993/117-702 WAGO Pre-assembled Connector Systems Image 3
774-9993/117-702 WAGO Pre-assembled Connector Systems Image 4
774-9993/117-702 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
33.2724 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
33.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.2724 €

Connection cable, 774-9993/117-702, WAGO

This Connecting line provides the foundation for installation of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.

This pluggable installation connector is used for electrical currents up to 20 A. Thus the product is also suitable for high power loads. It fits like a glove into conduits or boreholes thanks to its design.

Features

  • With A coding for use in a large number of general mains applications
  • Ready to install and use immediately
  • Quick replacement of defective units during ongoing operation
Technical specifications
Cable length 7 m
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
