774-9993/117-501 | WAGO

Connection cable, 5 m, socket straight to open end, 2.5 mm², 774-9993/117-501

Order No.: 44P8375
EAN: 4045454323288
MPN:
774-9993/117-501
Series: WINSTA RD

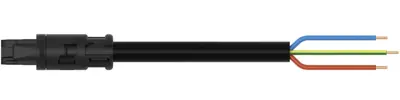

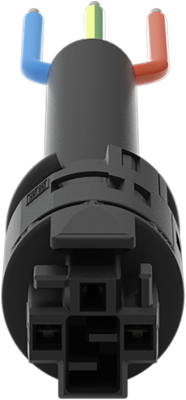

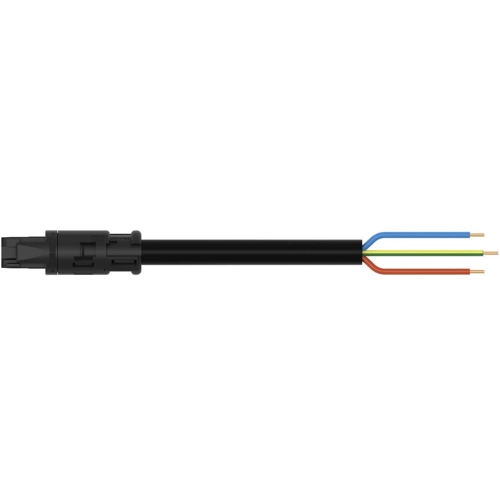

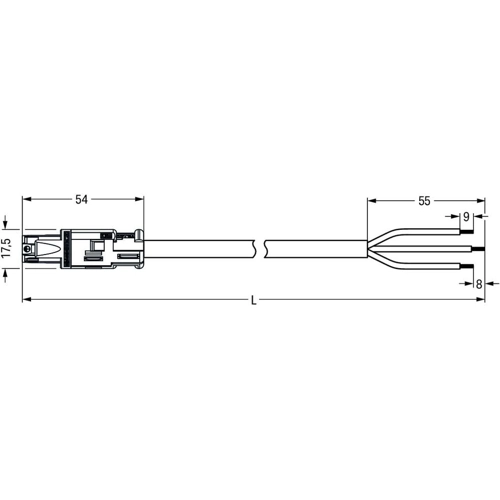

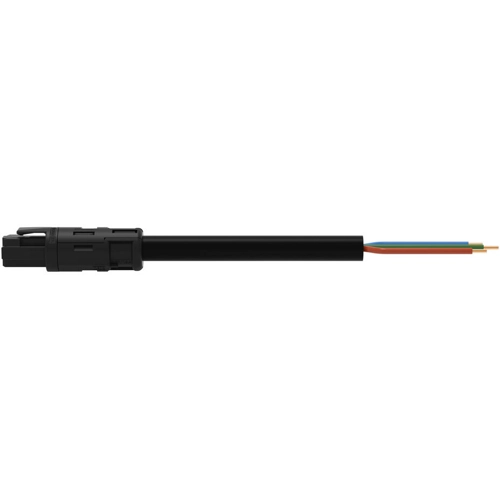

774-9993/117-501 WAGO Pre-assembled Connector Systems Image 1
774-9993/117-501 WAGO Pre-assembled Connector Systems Image 2
774-9993/117-501 WAGO Pre-assembled Connector Systems Image 3
774-9993/117-501 WAGO Pre-assembled Connector Systems Image 4
774-9993/117-501 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
26.7036 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
26.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.7036 €

Connection cable, 774-9993/117-501, WAGO

Connecting line for signal and power transmission. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This pluggable installation connector can be employed for a load of up to 20 A. Therefore, it can also be used for high power loads. This product fits into drill holes and conduits with diameters up to 20 mm. The Connecting line is free of halogen. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials are flame-resistant.

Features

  • Saves time, since no wiring is required at the construction site
  • Flexible installation to save space
  • Convenient installation and commissioning
Technical specifications
Cable length 5 m
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
