774-9993/116-101 | WAGO

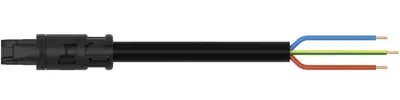

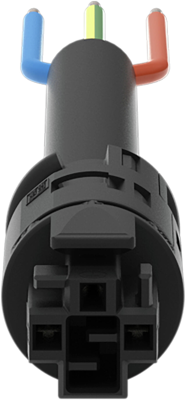

Connection cable, 1 m, socket straight to open end, 1.5 mm², 774-9993/116-101
Unit Price (€ / pc.)
10.7576 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connection cable, 774-9993/116-101, WAGO
Connecting line for greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This product is suitable for drill holes and conduits with diameters up to 20 mm.
Features
- With A coding for a large number of applications
- Ready for immediate use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable length | 1 m | |
| Connection 1 design | straight | |
| Connection (1) | socket | |
| Version | connection line | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
