774-9993/107-601 | WAGO

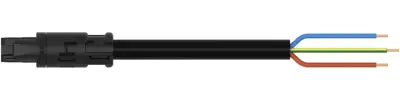

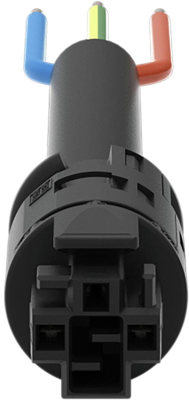

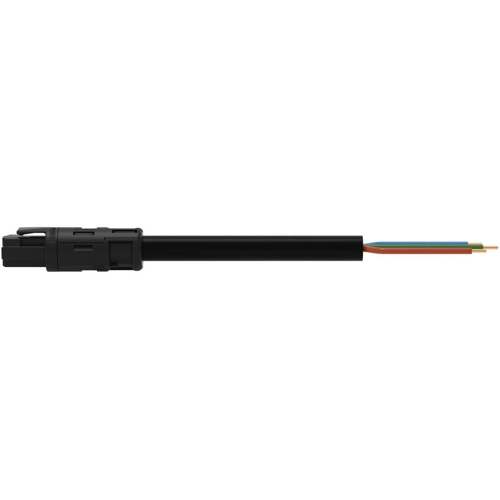

Connection cable, 6 m, socket straight to open end, 2.5 mm², 774-9993/107-601

Order No.: 44P8346
EAN: 4045454322953
MPN:
774-9993/107-601
Series: WINSTA RD
774-9993/107-601 WAGO Pre-assembled Connector Systems Image 1
774-9993/107-601 WAGO Pre-assembled Connector Systems Image 2
774-9993/107-601 WAGO Pre-assembled Connector Systems Image 3
774-9993/107-601 WAGO Pre-assembled Connector Systems Image 4
774-9993/107-601 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
22.5267 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
22.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.5267 €

Connection cable, 774-9993/107-601, WAGO

Connecting line with mechanical coding and color coding of the pluggable installation connector ensures error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This product has a current rating of 20 A - therefore it is suitable for high power loads. It fits optimally into conduits or boreholes thanks to its design. This product meets all the mandatory fire protection requirements of fire class E; therefore it can be used in domains where fire safety is relevant.

Features

  • Saves time, since no wiring is required at the construction site
  • Suitable for any application
  • Convenient installation and commissioning
Technical specifications
Filter Property Value
Connection (2) open end
Cable cross-section 2.5 mm²
Version connection line
Cable length 6 m
Connection 1 design straight
Connection (1) socket
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
