774-9993/016-802 | WAGO

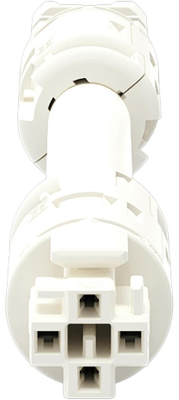

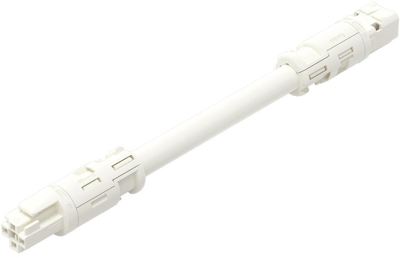

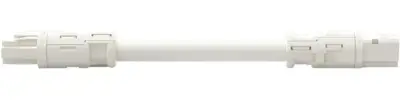

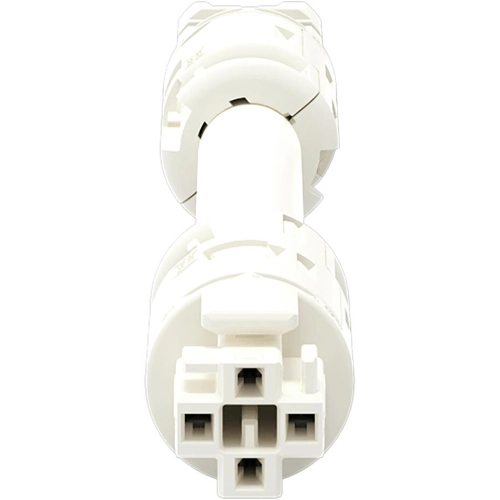

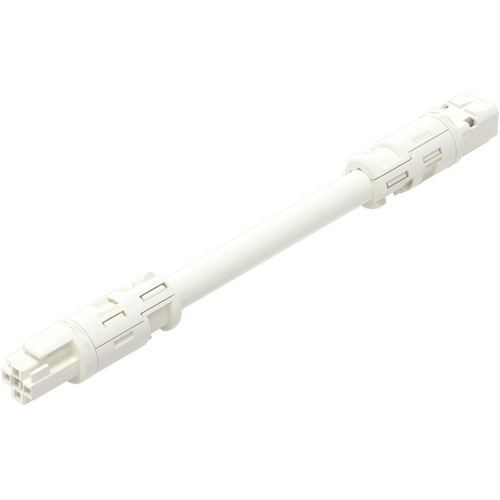

Connection cable, 8 m, socket straight to plug straight, 1.5 mm², 774-9993/016-802
Unit Price (€ / pc.)
27.6913 € *
Standard delivery time from the manufacturer is: 3 Weeks
Pre-assembled interconnecting cable, 774-9993/016-802, WAGO
Connecting line for signal and power transmission. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. It fits perfectly into boreholes or conduits thanks to its design.
Features
- Suitable for any application
- Guarantees safe use
- Convenient installation and commissioning
Technical specifications
| Cable length | 8 m | |
| Connection 2 design | straight | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection (1) | socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
