774-9973/016-405 | WAGO

Connection cable, 4 m, socket straight to plug straight, 1.5 mm², 774-9973/016-405

Order No.: 44P8657
EAN: 4055143522458
MPN:
774-9973/016-405
Series: WINSTA RD

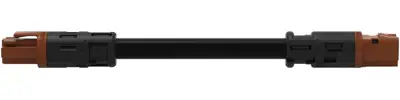

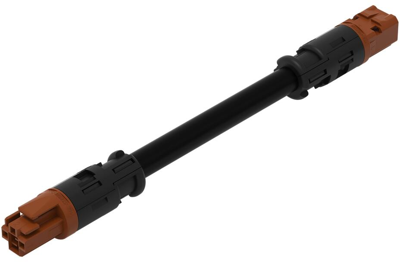

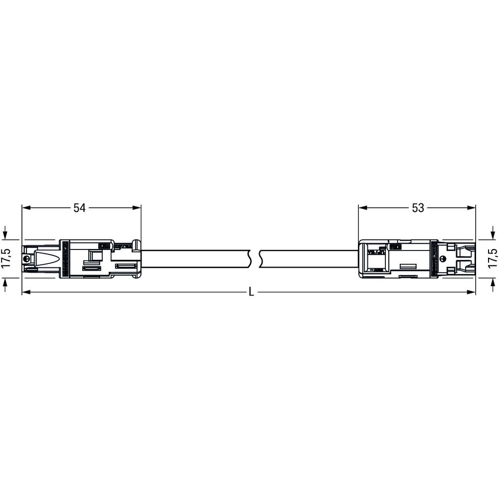

774-9973/016-405 WAGO Pre-assembled Connector Systems Image 1
774-9973/016-405 WAGO Pre-assembled Connector Systems Image 2
774-9973/016-405 WAGO Pre-assembled Connector Systems Image 3
774-9973/016-405 WAGO Pre-assembled Connector Systems Image 4
774-9973/016-405 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
20.5037 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
20.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.5037 €

Pre-assembled interconnecting cable, 774-9973/016-405, WAGO

This Connecting line 3-pole supports fast, reliable installation. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. It offers a round design that is very good for use in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector. The Connecting line is halogen-free.

Features

  • With S coding for AC applications of distributed components
  • Ready to install and use immediately
  • Rapid, structured electrical installation
Technical specifications
Cable length 4 m
Connection 2 design straight
Cable cross-section 1.5 mm²
Connection (2) plug
Version connecting line
Connection 1 design straight
Connection (1) socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
