774-9973/006-205 | WAGO

Connection cable, 2 m, socket straight to plug straight, 1.5 mm², 774-9973/006-205

Order No.: 44P8663
EAN: 4050821683902
MPN:
774-9973/006-205
Series: WINSTA RD

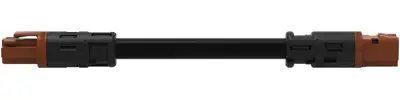

774-9973/006-205 WAGO Pre-assembled Connector Systems Image 1

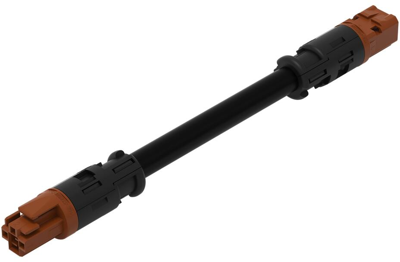

774-9973/006-205 WAGO Pre-assembled Connector Systems Image 2

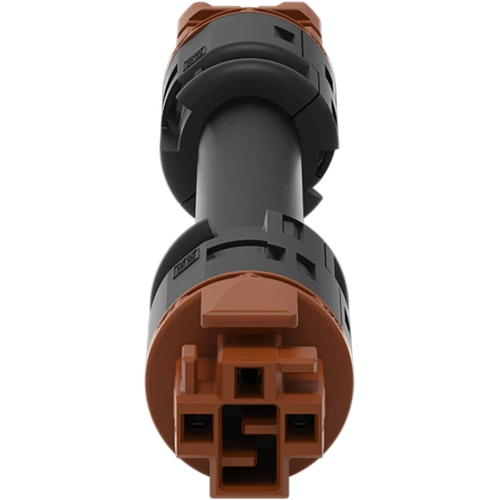

774-9973/006-205 WAGO Pre-assembled Connector Systems Image 3
774-9973/006-205 WAGO Pre-assembled Connector Systems Image 4
774-9973/006-205 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
14.2800 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
14.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.2800 €

Pre-assembled interconnecting cable, 774-9973/006-205, WAGO

This Connecting line S coding allows installation of solid and fine-stranded conductors. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. It features a round design that is very good for installation in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector.

Features

  • With S coding for AC applications of distributed components
  • Flexible installation to save space
  • Rapid, structured electrical installation
Technical specifications
Cable length 2 m
Connection 2 design straight
Cable cross-section 1.5 mm²
Connection (2) plug
Version connecting line
Connection 1 design straight
Connection (1) socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
