774-9293/217-701 | WAGO

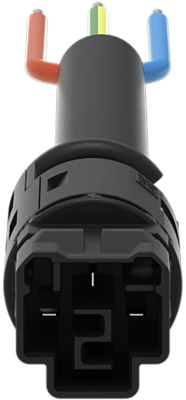

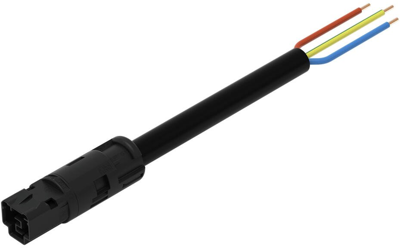

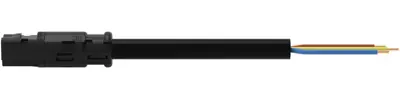

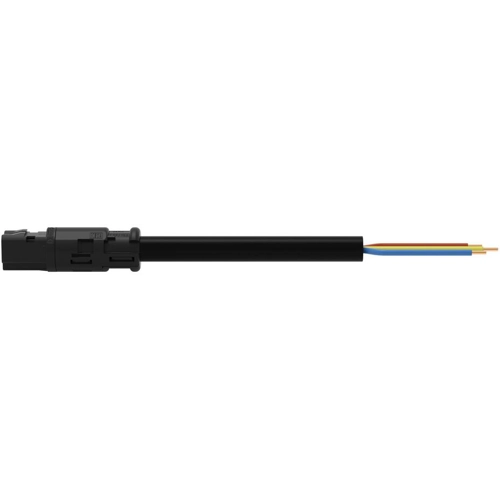

Connection cable, 7 m, plug straight to open end, 2.5 mm², 774-9293/217-701
Unit Price (€ / pc.)
48.9328 € *
Standard delivery time from the manufacturer is: On Request
Connection cable, 774-9293/217-701, WAGO
This Connecting line provides the foundation for installation of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
This pluggable installation connector can be used for electrical currents up to 20 A. Thus the product is especially suitable for high power loads. The round design is ideal for installation in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector. This product meets the strict safety standards of fire class B2.
Features
- With A coding for use in a large number of general mains applications
- Flexible installation to save space
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 7 m | |
| Cable cross-section | 2.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
