774-9293/217-101 | WAGO

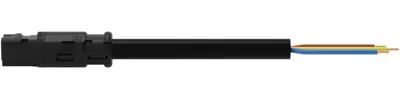

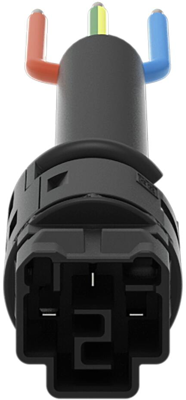

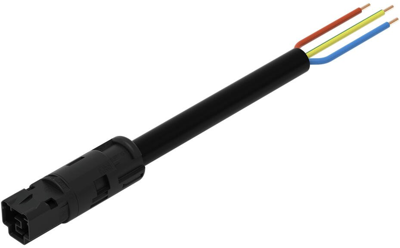

Connection cable, 1 m, plug straight to open end, 2.5 mm², 774-9293/217-101
Unit Price (€ / pc.)
16.2316 € *
Standard delivery time from the manufacturer is: On Request
Connection cable, 774-9293/217-101, WAGO
Connecting line, 3-pole, the coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
This pluggable installation connector is designed for a current load of up to 20 A. The Connecting line is halogen-free. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials are flame-resistant.
Features
- Rapid, structured electrical installation
- With A coding for use in a large number of general mains applications
- Saves time, since no wiring is required at the construction site
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable length | 1 m | |
| Coding | A | |
| Connection 1 design | straight | |
| Connection (1) | plug | |
| Version | connection line | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
