771-9995/116-402 | WAGO

Connection cable, 4 m, socket, 5 pole straight to open end, 1.5 mm², 771-9995/116-402

Order No.: 45P3236
EAN: 4044918590297
MPN:
771-9995/116-402
Series: WINSTA MIDI

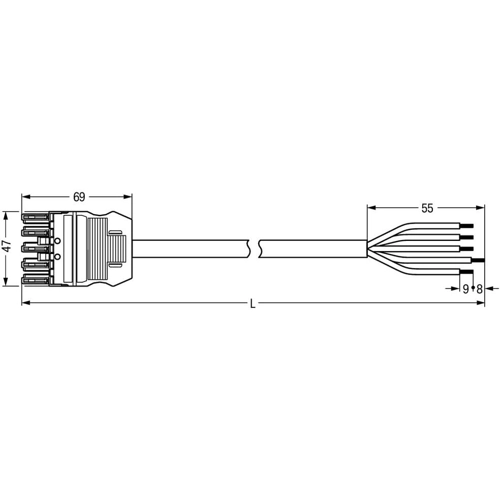

771-9995/116-402 WAGO Pre-assembled Connector Systems Image 1
771-9995/116-402 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
24.5616 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
24.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.5616 €

Connecting line, 771-9995/116-402, WAGO

The WINSTA MIDI Connecting line A coding supports fast, reliable installation. This pluggable installation connector with spring pressure connection technology work without screw connections. It allows flexible, error-free installation in numerous possible uses. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

The cable is pre-assembled with a socket and a free end. The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, even more reliable, and error-free. Using this pre-assembled system decreases assembly times and installation errors at the construction site.

Features

  • Pluggable installation connector with protection against mismating
  • Suitable for any application
  • For any mains application
  • Quick replacement of defective units during ongoing operation
Technical specifications
Cable length 4 m
Coding A
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) socket, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
