771-9995/107-201 | WAGO

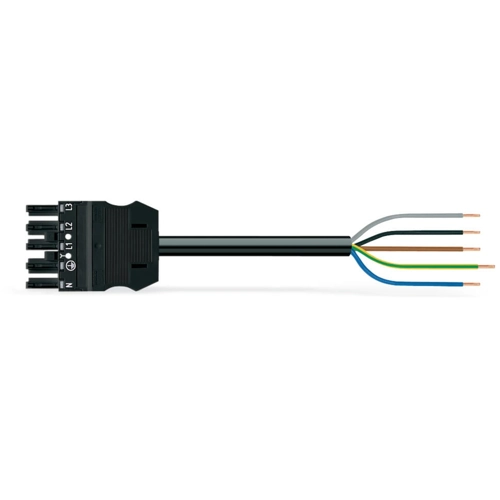

Connection cable, 2 m, socket, 5 pole straight to open end, 2.5 mm², 771-9995/107-201
Unit Price (€ / pc.)
14.8631 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connecting line, 771-9995/107-201, WAGO
The WINSTA MIDI Connecting line A coding. This pluggable installation connector is used when specifications repeat or is planned on a specific pattern, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- With A coding for a large number of applications
- Ready for immediate use
- Fast, secure installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Version | connection line | |
| Connection (2) | open end | |
| Connection 1 design | straight | |
| Cable length | 2 m | |
| Connection (1) | socket, 5 pole | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
