771-9995/106-102 | WAGO

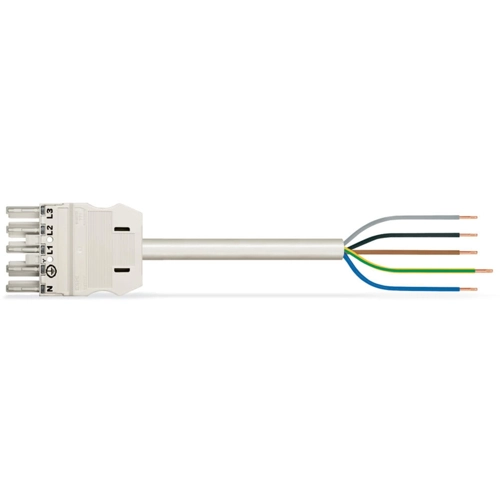

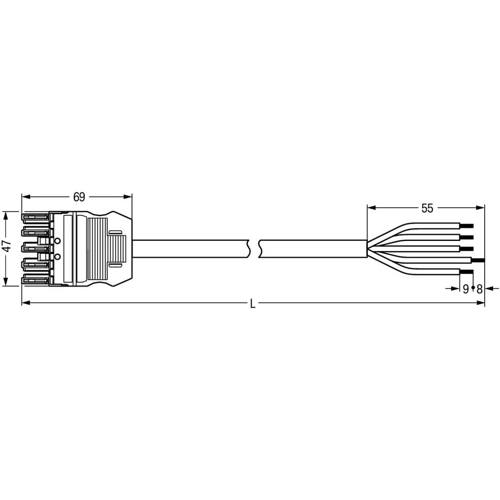

Connection cable, 1 m, socket, 5 pole straight to open end, 1.5 mm², 771-9995/106-102
Connecting line, 771-9995/106-102, WAGO
The WINSTA MIDI Connecting line with protection type IP20 is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. This pluggable installation connector with spring pressure connection technology work entirely without screw connections. It allows flexible, error-free installation in numerous possible uses. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Protection against mismating eliminates errors
- For any mains application
- Fast, secure installation
| Connection (1) | Buchse, 5-polig | |
| Connection (2) | offenes Ende | |
| Version | Anschlussleitung | |
| Connection 1 design | gerade | |
| Cable length | 1 m | |
| Coding | A | |
| Cable cross-section | 1,5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
