771-9995/105-303 | WAGO

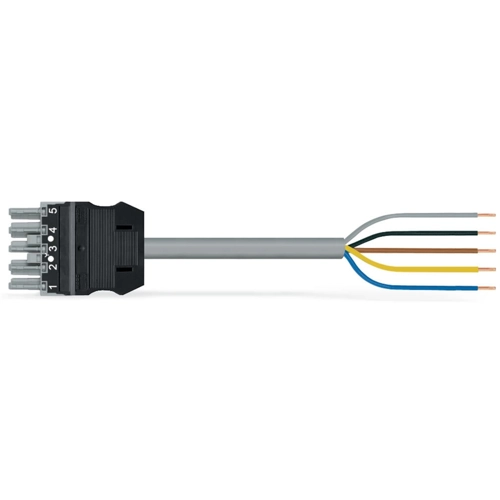

Connection cable, 3 m, socket, 5 pole straight to open end, 1.0 mm², 771-9995/105-303

Order No.: 45P3280
EAN: 4055143365512
MPN:
771-9995/105-303
Series: WINSTA MIDI
771-9995/105-303 WAGO Pre-assembled Connector Systems Image 1
771-9995/105-303 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
17.4335 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
17.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.4335 €

Connecting line, 771-9995/105-303, WAGO

The WINSTA MIDI Connecting line B coding supports fast, reliable installation. This pluggable installation connector with spring pressure connection technology function entirely without screw connections. It allows resource-efficient, error-free installation in numerous applications. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.

The cable is pre-assembled with a socket and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.

Features

  • Protection against mismating eliminates errors
  • Simple circuits
  • For automation controllers
  • Ready for immediate use
  • Convenient installation and commissioning
Technical specifications
Anschluss (1) Buchse, 5-polig
Anschluss (2) offenes Ende
Ausführung Anschlussleitung
Bauform Anschluss 1 gerade
Kabellänge 3 m
Kodierung B
Leiterquerschnitt 1,0 mm²
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
