771-9995/005-605 | WAGO

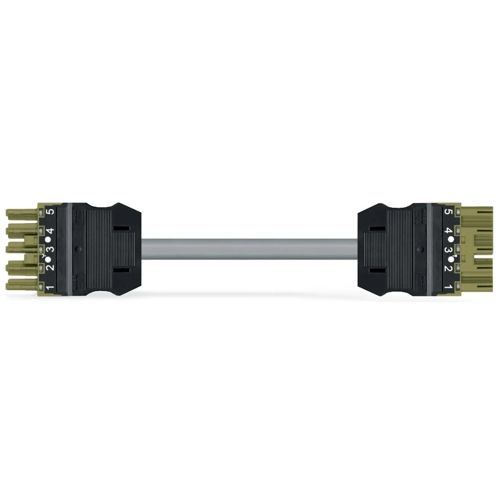

Connection cable, 6 m, socket, 5 pole straight to plug, 5 pole straight, 1.0 mm², 771-9995/005-605
Connecting line, 771-9995/005-605, WAGO
WINSTA MIDI Connecting line allows flexible, error-free installation in numerous possible uses. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The Connecting line is equipped with a socket and a plug. The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and consequently more efficient, more reliable, and error-free. Using this pre-assembled system decreases time spent on assembly and installation errors at the construction site.
Features
- Pluggable installation connector with protection against mismating
- With B coding for use in process automation, such as lighting technology
- Convenient installation and commissioning
| Filter | Property | Value |
|---|---|---|
| Connection (2) | plug, 5 pole | |
| Connection 2 design | straight | |
| Cable length | 6 m | |
| Coding | B | |
| Connection (1) | socket, 5 pole | |
| Connection 1 design | straight | |
| Version | connecting line | |
| Cable cross-section | 1.0 mm² |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
