771-9994/205-607 | WAGO

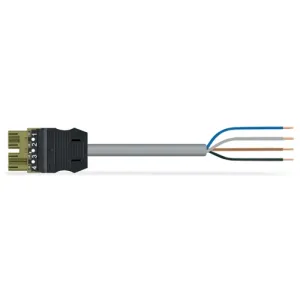

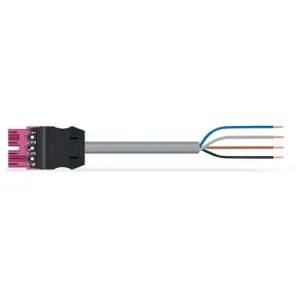

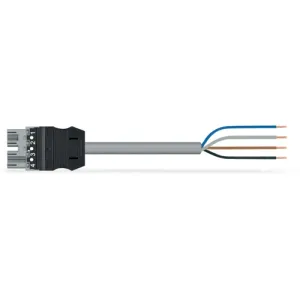

Connection cable, 6 m, plug, 4 pole straight to open end, 1.0 mm², 771-9994/205-607
Unit Price (€ / pc.)
21.1939 € *
Standard delivery time from the manufacturer is: 3 Weeks
Connecting line, 771-9994/205-607, WAGO
WINSTA MIDI Connecting line for greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Due to the included test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With B coding for controllers such as sun blinds and lighting fixtures
- Ready for immediate use
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 6 m | |
| Coding | B | |
| Cable cross-section | 1.0 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
