771-9994/205-107 | WAGO

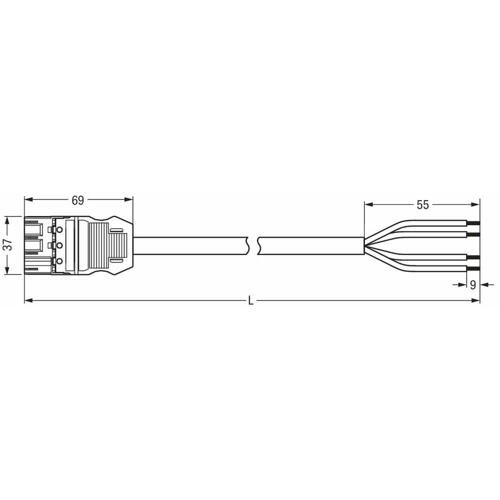

Connection cable, 1 m, plug, 4 pole straight to open end, 1.0 mm², 771-9994/205-107

Order No.: 45P4075
EAN: 4055143510790
MPN:
771-9994/205-107
Series: WINSTA MIDI
771-9994/205-107 WAGO Pre-assembled Connector Systems Image 1
771-9994/205-107 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
13.8516 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.8516 €

Connecting line, 771-9994/205-107, WAGO

WINSTA MIDI Connecting line allows fast, efficient, error-free installation in numerous possible uses. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. B coding enables the WINSTA MIDI pluggable installation connectors to be used for control in applications in the domains of automation, mechanical engineering and robotics.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.

Features

  • Protection against mismating eliminates errors
  • With B coding for controllers, for example sun blinds and lighting fixtures
  • Convenient installation and commissioning
  • Quick replacement of defective units during ongoing operation
Technical specifications
Cable length 1 m
Coding B
Cable cross-section 1.0 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 4 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
