771-9994/106-607 | WAGO

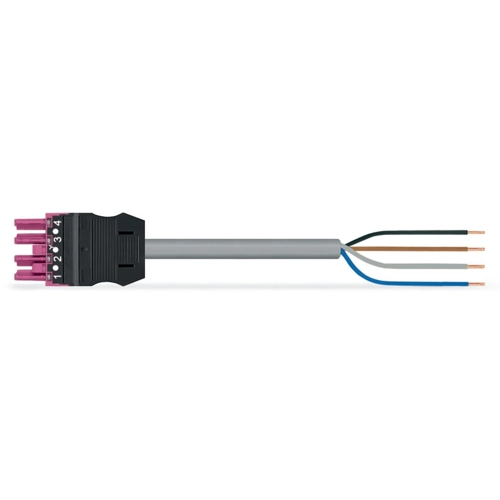

Connection cable, 6 m, socket, 4 pole straight to open end, 1.5 mm², 771-9994/106-607
Connecting line, 771-9994/106-607, WAGO
The WINSTA MIDI Connecting line 4-pole allows assembly of solid and fine-stranded conductors. This pluggable installation connector can be used when requirements repeat or is distributed on a specific pattern, for example for installing grid lighting or flush-mount lighting. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The cable is pre-assembled with a socket and a free end. This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables.
Features
- Effective protection against mismating
- For automation controllers
- With B coding for use in process automation, such as lighting technology, for example
- Flexible installation to save space
- Rapid, structured electrical installation
| Filter | Property | Value |
|---|---|---|
| Connection (1) | socket, 4 pole | |
| Connection 1 design | straight | |
| Cable length | 6 m | |
| Coding | B | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Connection (2) | open end |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
