771-9994/106-205 | WAGO

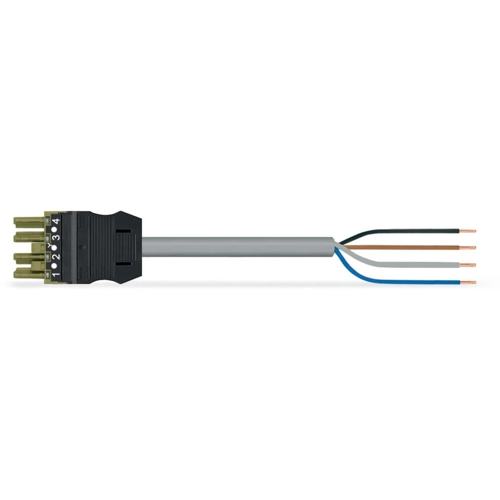

Connection cable, 2 m, socket, 4 pole straight to open end, 1.5 mm², 771-9994/106-205
Connecting line, 771-9994/106-205, WAGO
The WINSTA MIDI Connecting line B coding. The pluggable installation connector with spring pressure connection technology work completely without screw connections. It allows fast, efficient, error-free installation in a large number of possible uses. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
The Connecting line is equipped with a socket and a free end. This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables.
Features
- Effective protection against mismating
- Simple circuits
- With B coding for controllers such as sun blinds and lighting fixtures
- Quick replacement of defective units during ongoing operation
| Cable length | 2 m | |
| Coding | B | |
| Cable cross-section | 1.5 mm² | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | socket, 4 pole |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
