771-9994/106-202 | WAGO

Connection cable, 2 m, socket, 4 pole straight to open end, 1.5 mm², 771-9994/106-202

Order No.: 45P2387
EAN: 4044918590792
MPN:
771-9994/106-202
Series: WINSTA MIDI
771-9994/106-202 WAGO Pre-assembled Connector Systems Image 1
771-9994/106-202 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
11.1979 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
11.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.1979 €

Connecting line, 771-9994/106-202, WAGO

The WINSTA MIDI Connecting line rated current 16 A. The pluggable installation connector with spring pressure connection technology work entirely without screw connections. It allows fast, efficient, error-free installation in numerous applications. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.

The cable is pre-assembled with a socket and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.

Features

  • Effective protection against mismating
  • Simple circuits
  • With A coding for a large number of uses
  • Quick replacement of defective units during ongoing operation

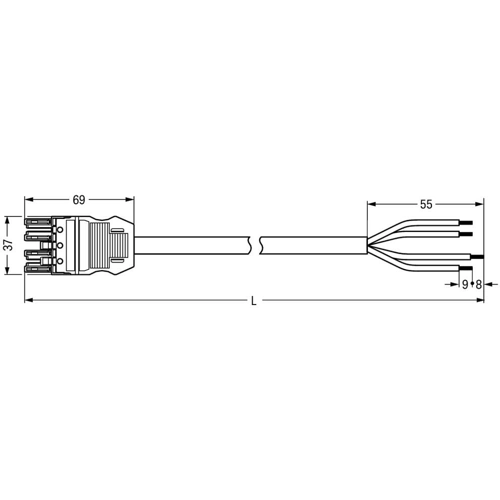

Technical specifications
Cable length 2 m
Coding A
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) socket, 4 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
