771-9993/805-302 | WAGO

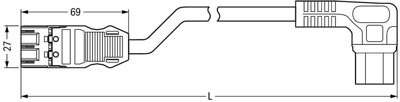

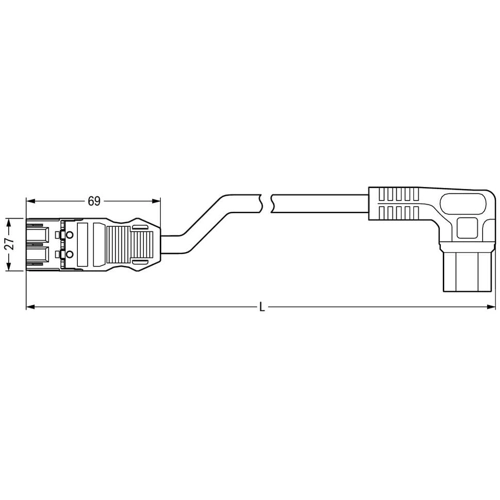

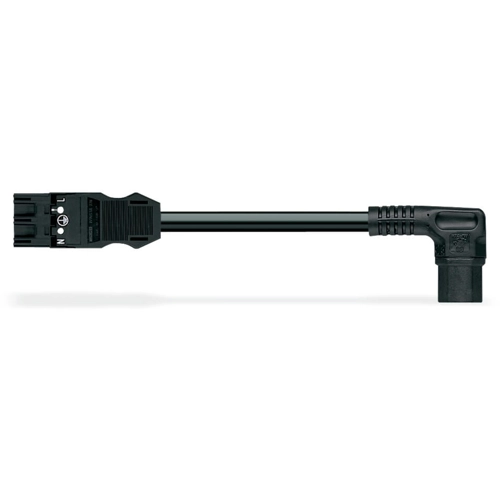

Device connection cable, 3 m, plug, 3 pole straight to C13 jack, angled angled, 1.0 mm², 771-9993/805-302
Device connection line,, 771-9993/805-302, WAGO
The WINSTA MIDI Connecting line 3-pole provides the foundation for assembly of fine-stranded and solid conductors. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. Due to the built-in test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and expense.
The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Using this pre-assembled system reduces assembly times and errors during installation at the construction site.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- With A coding for use in many general mains applications
- Flexible installation to save space
- Convenient installation and commissioning
| Cable length | 3 m | |
| Coding | A | |
| Connection 2 design | angled | |
| Cable cross-section | 1.0 mm² | |
| Connection (2) | C13 jack, angled | |
| Version | connection line | |
| Connection 1 design | straight | |
| Connection (1) | plug, 3 pole |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
