771-9993/805-201 | WAGO

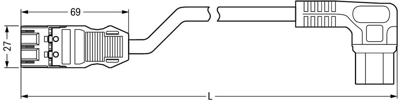

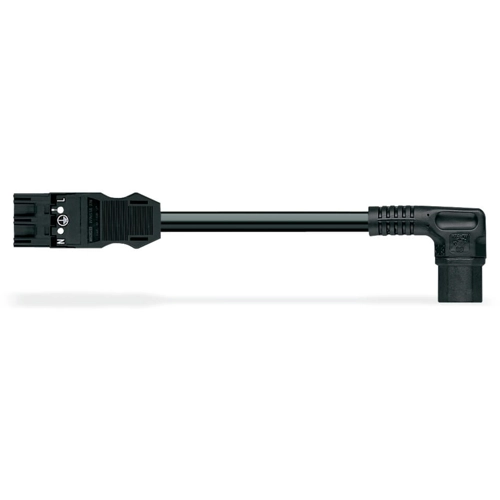

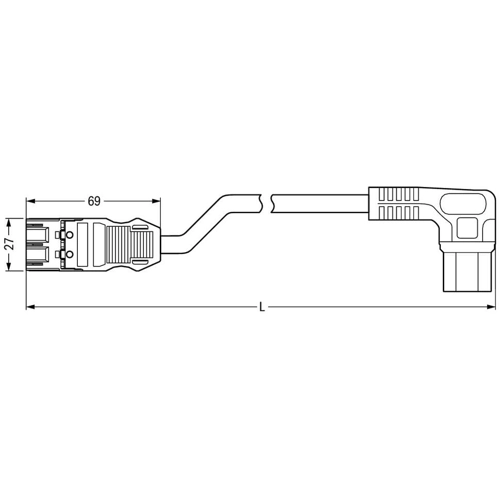

Device connection cable, 2 m, plug, 3 pole straight to C13 jack, angled angled, 1.0 mm², 771-9993/805-201
Unit Price (€ / pc.)
13.9706 € *
Standard delivery time from the manufacturer is: 4 Weeks
Device connection line, 771-9993/805-201, WAGO
The WINSTA MIDI Connecting line rated current 10 A is the pluggable solution for your application in control cabinets, on PCBs or for lighting connections. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. This product meets all the relevant fire protection requirements of fire class E; therefore it can be used in domains where fire safety is relevant.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With A coding for a great number of uses
- Ready for immediate use
- Rapid, structured electrical installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | plug, 3 pole | |
| Connection 1 design | straight | |
| Cable length | 2 m | |
| Coding | A | |
| Cable cross-section | 1.0 mm² | |
| Connection 2 design | angled | |
| Version | connection line | |
| Connection (2) | C13 jack, angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
