771-9993/206-507 | WAGO

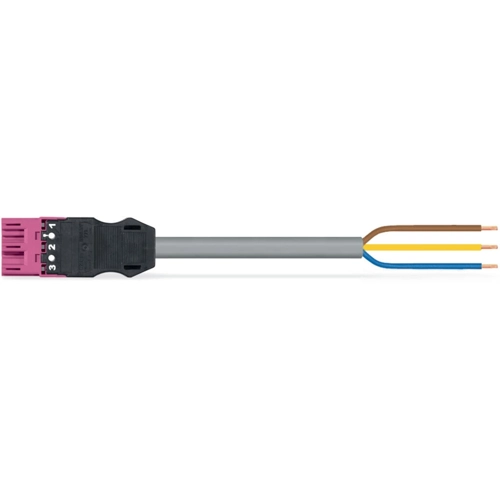

Connection cable, 5 m, plug, 3 pole straight to open end, 1.5 mm², 771-9993/206-507

Order No.: 45P3914
EAN: 4055143461207
MPN:
771-9993/206-507
Series: WINSTA MIDI
771-9993/206-507 WAGO Pre-assembled Connector Systems Image 1
771-9993/206-507 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
12.138 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.138 €

Connecting line, 771-9993/206-507, WAGO

The WINSTA MIDI Connecting line 3-pole. This pluggable installation connector are used when criteria repeat or is planned on a specific grid, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

The cable is pre-assembled with a plug and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.

Features

  • Pluggable installation connector with protection against mismating
  • Simple circuits
  • With B coding for controllers, for example lighting fixtures and sun blinds
  • Rapid, structured electrical installation
Technical specifications
Cable length 5 m
Coding B
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 3 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
