771-9993/205-203 | WAGO

Connection cable, 2 m, plug, 3 pole straight to open end, 1.0 mm², 771-9993/205-203

Order No.: 45P3923
EAN: 4055143508520
MPN:
771-9993/205-203
Series: WINSTA MIDI

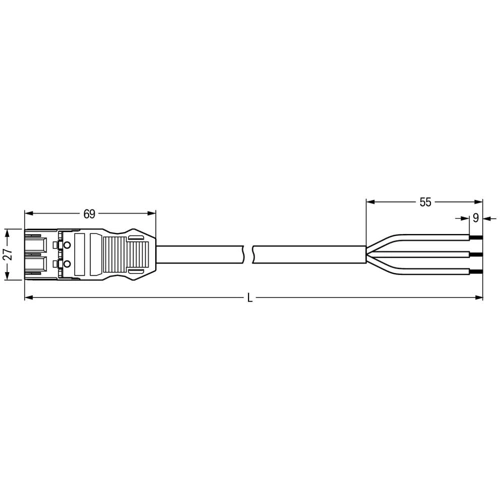

771-9993/205-203 WAGO Pre-assembled Connector Systems Image 1
771-9993/205-203 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
8.211 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
8.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.211 €

Connecting line, 771-9993/205-203, WAGO

The WINSTA MIDI Connecting line with protection type IP20 is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. Whether on PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to establish connections in accordance with a huge variety of requirements in no time flat. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

The Connecting line is equipped with a plug and a free end. The WINSTA Pluggable Connection System is tailored to meet the very strict requirements of building installation. Because it is pluggable, it is more efficient, even more reliable, and error-free. Pre-assembly reduces installation times and errors during installation at the construction site.

Features

  • Protection against mismating eliminates errors
  • Simple circuits
  • For automation controllers
  • Exact dimensions
  • Convenient installation and commissioning
Technical specifications
Cable length 2 m
Coding B
Cable cross-section 1.0 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 3 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
