771-9975/216-402 | WAGO

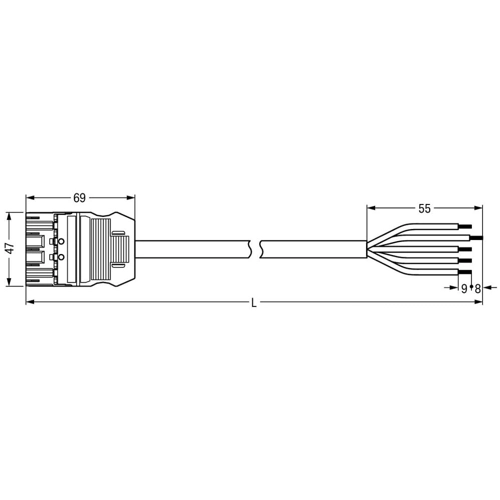

Connection cable, 4 m, plug, 5 pole straight to open end, 1.5 mm², 771-9975/216-402

Order No.: 45P5083
EAN: 4055143496995
MPN:
771-9975/216-402
Series: WINSTA MIDI
771-9975/216-402 WAGO Pre-assembled Connector Systems Image 1
771-9975/216-402 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
24.5616 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
24.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.5616 €

Connecting line, 771-9975/216-402, WAGO

The WINSTA MIDI Connecting line supports fast, reliable installation. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it ensures time-saving, error-free installation and offers flexibility and customization for meeting all installation requirements.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.

Features

  • Protection against mismating eliminates errors
  • Simple circuits
  • For UPS applications
  • Ready to install and use immediately
  • Convenient installation and commissioning
Technical specifications
Cable length 4 m
Coding P
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
