771-9975/207-802 | WAGO

Connection cable, 8 m, plug, 5 pole straight to open end, 2.5 mm², 771-9975/207-802

Order No.: 45P5075
EAN: 4055143500593
MPN:
771-9975/207-802
Series: WINSTA MIDI

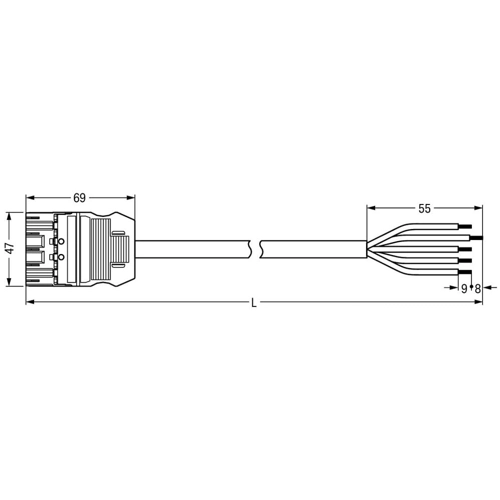

771-9975/207-802 WAGO Pre-assembled Connector Systems Image 1
771-9975/207-802 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
29.0360 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
29.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.0360 €

Connecting line, 771-9975/207-802, WAGO

The WINSTA MIDI Connecting line mismating supports fast, reliable installation. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 20 A.

WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably.

Features

  • Protection against mismating eliminates errors
  • For automation controllers
  • For UPS applications
  • Rapid, structured electrical installation
Technical specifications
Cable length 8 m
Coding P
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 5 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
