771-9973/217-302 | WAGO

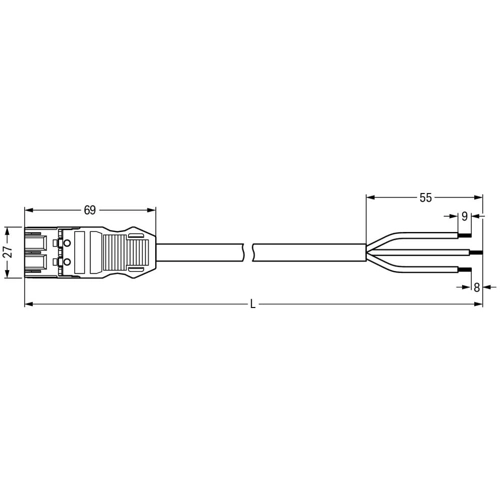

Connection cable, 3 m, plug, 3 pole straight to open end, 2.5 mm², 771-9973/217-302
Unit Price (€ / pc.)
14.2324 € *
Standard delivery time from the manufacturer is: 3 Weeks
Connecting line, 771-9973/217-302, WAGO
The WINSTA MIDI Connecting line supports fast, reliable installation. It allows fast, efficient, error-free installation in a large number of possible uses. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This product has a current rating of 20 A - so it is suitable for robust loads.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- For UPS applications
- Flexible installation to save space
- Fast, secure installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | plug, 3 pole | |
| Connection 1 design | straight | |
| Cable length | 3 m | |
| Coding | P | |
| Cable cross-section | 2.5 mm² | |
| Version | connection line | |
| Connection (2) | open end |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
