771-9973/217-201 | WAGO

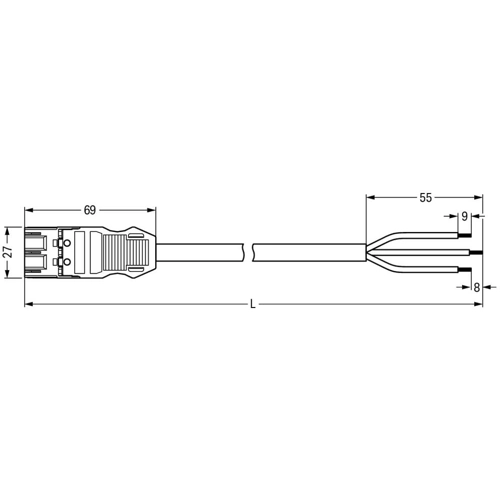

Connection cable, 2 m, plug, 3 pole straight to open end, 2.5 mm², 771-9973/217-201

Order No.: 45P3996
EAN: 4045454402549
MPN:
771-9973/217-201
Series: WINSTA MIDI
771-9973/217-201 WAGO Pre-assembled Connector Systems Image 1
771-9973/217-201 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
11.4002 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
11.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.4002 €

Connecting line, 771-9973/217-201, WAGO

The WINSTA MIDI Connecting line supports fast, reliable installation. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 20 A. Thus the product is especially suitable for high power loads. Through its Push-in Cage Clamp spring pressure connection technology, it ensures time-saving, error-free installation and offers flexibility for meeting all installation requirements.

WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably.

Features

  • Protection against mismating eliminates errors
  • For UPS applications
  • Ready for immediate use
Technical specifications
Cable length 2 m
Coding P
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 3 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
