771-9973/216-305 | WAGO

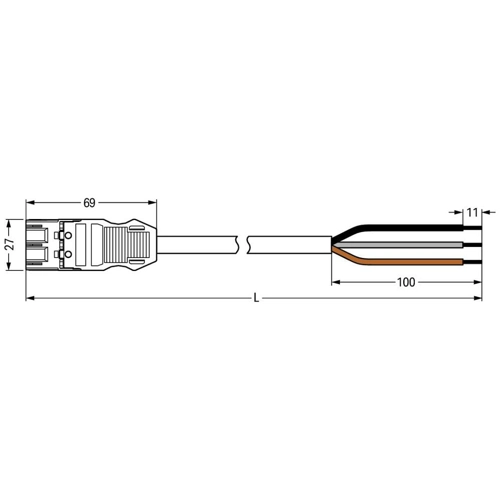

Connection cable, 3 m, plug, 3 pole straight to open end, 1.5 mm², 771-9973/216-305
Unit Price (€ / pc.)
9.3415 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connecting line, 771-9973/216-305, WAGO
The WINSTA MIDI Connecting line with protection against mismating allows installation of solid and fine-stranded conductors. It allows resource-efficient, error-free installation in numerous applications. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Now you can also lower installation costs without compromising quality and safety.
Features
- Protection against mismating eliminates errors
- For automation controllers
- With S coding for AC applications of distributed components
- Quick replacement of defective units during ongoing operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | plug, 3 pole | |
| Connection 1 design | straight | |
| Cable length | 3 m | |
| Coding | S | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Connection (2) | open end |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
