771-9973/216-201 | WAGO

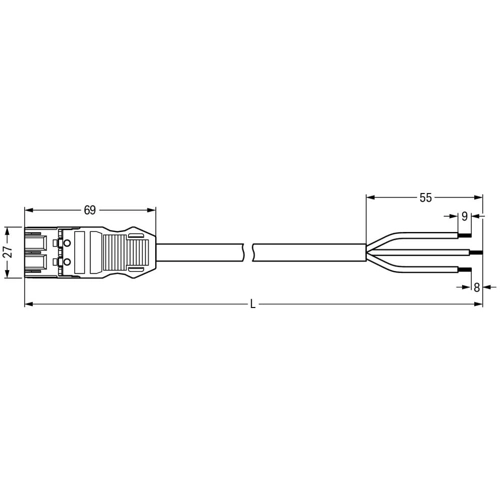

Connection cable, 2 m, plug, 3 pole straight to open end, 1.5 mm², 771-9973/216-201

Order No.: 45P3981
EAN: 4045454402327
MPN:
771-9973/216-201
Series: WINSTA MIDI
771-9973/216-201 WAGO Pre-assembled Connector Systems Image 1
771-9973/216-201 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.6398 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.6398 €

Connecting line, 771-9973/216-201, WAGO

The WINSTA MIDI Connecting line with protection against mismating. This pluggable installation connector can be used when criteria repeat or is distributed on a defined pattern, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.

The cable is pre-assembled with a plug and a free end. WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too!.

Features

  • Effective protection against mismating
  • With P coding for uninterruptible power supply
  • Convenient installation and commissioning
Technical specifications
Cable length 2 m
Coding P
Cable cross-section 1.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 3 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
