771-9973/207-602 | WAGO

Connection cable, 6 m, plug, 3 pole straight to open end, 2.5 mm², 771-9973/207-602

Order No.: 45P3974
EAN: 4055143484817
MPN:
771-9973/207-602
Series: WINSTA MIDI

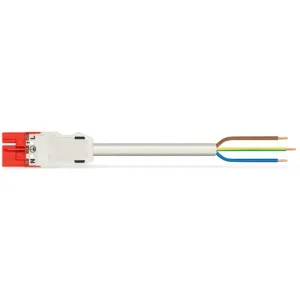

771-9973/207-602 WAGO Pre-assembled Connector Systems Image 1

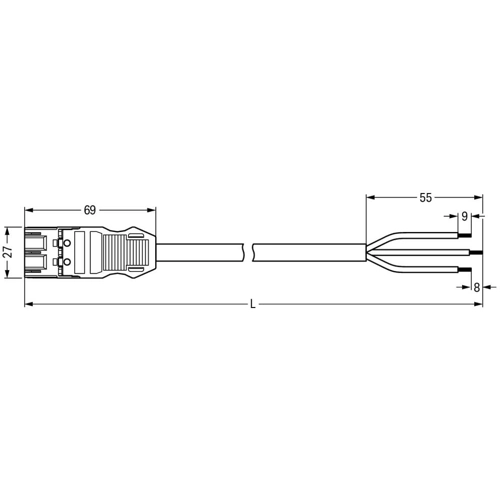

771-9973/207-602 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
16.0531 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
16.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.0531 €

Connecting line, 771-9973/207-602, WAGO

The WINSTA MIDI Connecting line rated current 20 A. This pluggable installation connector can be used when requirements repeat or is distributed on a defined pattern, for example for installing grid lighting or flush-mount lighting. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, even more reliable, and error-free. Using this pre-assembled system decreases assembly times and errors during installation at the construction site.

Features

  • Pluggable installation connector with protection against mismating
  • For automation controllers
  • For UPS applications
  • Flexible installation to save space
  • Quick replacement of defective units during ongoing operation
Technical specifications
Cable length 6 m
Coding P
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 3 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
