771-9973/207-502 | WAGO

Connection cable, 5 m, plug, 3 pole straight to open end, 2.5 mm², 771-9973/207-502

Order No.: 45P3972
EAN: 4045454523497
MPN:
771-9973/207-502
Series: WINSTA MIDI

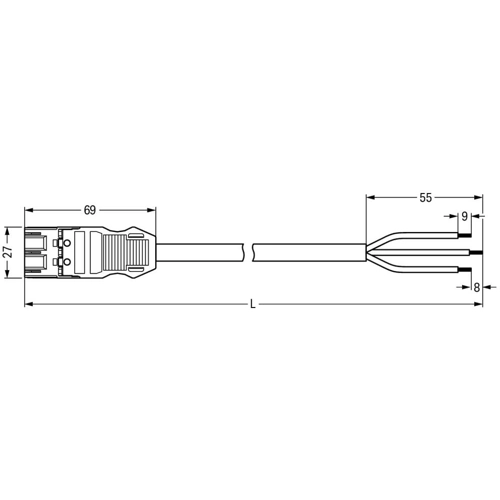

771-9973/207-502 WAGO Pre-assembled Connector Systems Image 1
771-9973/207-502 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
14.0182 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
14.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.0182 €

Connecting line, 771-9973/207-502, WAGO

The WINSTA MIDI Connecting line P coding allows assembly of fine-stranded and solid conductors. This pluggable installation connector can be used when requirements repeat or is planned on a specific pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

The Connecting line is equipped with a plug and a free end. The WINSTA Pluggable Connection System is ideally tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Use of this pre-assembled system decreases time spent on assembly and installation errors at the construction site.

Features

  • Protection against mismating eliminates errors
  • With P coding for use in implementing an uninterruptible power supply
  • Convenient installation and commissioning
Technical specifications
Cable length 5 m
Coding P
Cable cross-section 2.5 mm²
Connection (2) open end
Version connection line
Connection 1 design straight
Connection (1) plug, 3 pole
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
