771-9294/015-805 | WAGO

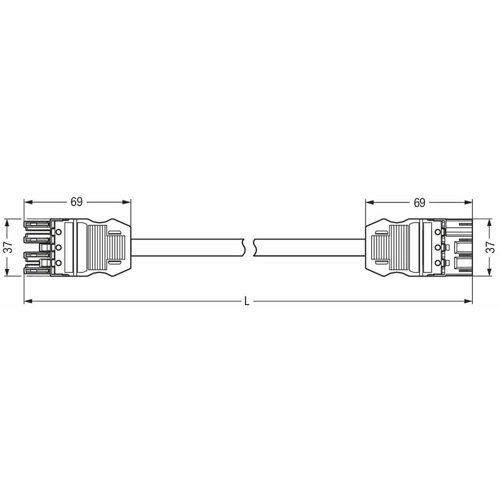

Connection cable, 8 m, socket, 4 pole straight to plug, 4 pole straight, 1.0 mm², 771-9294/015-805
Connecting line, 771-9294/015-805, WAGO
The WINSTA MIDI Connecting line B coding supports rapid, correct installation. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Due to the integrated test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and costs.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Now you can also reduce installation expenses without compromising quality and safety: with protection type IP20 reduces the need for servicing and prevents unnecessary downtime.
Features
- Protection against mismating eliminates errors
- Simple circuits
- For automation controllers
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
| Cable length | 8 m | |
| Coding | B | |
| Connection 2 design | straight | |
| Cable cross-section | 1.0 mm² | |
| Connection (2) | plug, 4 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection (1) | socket, 4 pole |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
