771-9294/015-803 | WAGO

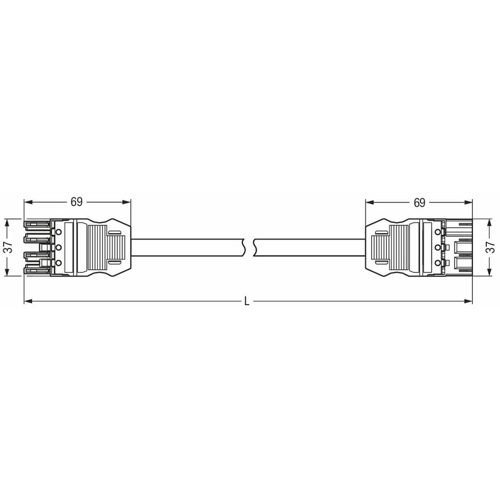

Connection cable, 8 m, socket, 4 pole straight to plug, 4 pole straight, 1.0 mm², 771-9294/015-803
Unit Price (€ / pc.)
53.3239 € *
Standard delivery time from the manufacturer is: On Request
Connecting line, 771-9294/015-803, WAGO
The WINSTA MIDI Connecting line rated current 10 A provides the foundation for assembly of fine-stranded and solid conductors. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This product complies with the requirements of fire class B2.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- With B coding for controllers such as sun blinds and lighting fixtures
- Convenient installation and commissioning
Technical specifications
| Cable length | 8 m | |
| Coding | B | |
| Connection 2 design | straight | |
| Cable cross-section | 1.0 mm² | |
| Connection (2) | plug, 4 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection (1) | socket, 4 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
