771-9294/015-203 | WAGO

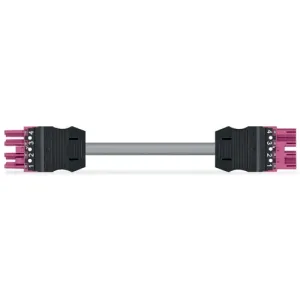

Connection cable, 2 m, socket, 4 pole straight to plug, 4 pole straight, 1.0 mm², 771-9294/015-203
Unit Price (€ / pc.)
27.2867 € *
Standard delivery time from the manufacturer is: On Request
Connecting line, 771-9294/015-203, WAGO
WINSTA MIDI Connecting line B coding. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it achieves time-saving, error-free installation and offers flexibility and customization for meeting an enormous variety of installation requirements.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- Ready to install and use immediately
- Fast, secure installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | socket, 4 pole | |
| Connection 1 design | straight | |
| Cable length | 2 m | |
| Coding | B | |
| Cable cross-section | 1.0 mm² | |
| Connection 2 design | straight | |
| Version | connecting line | |
| Connection (2) | plug, 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
