771-9293/015-807 | WAGO

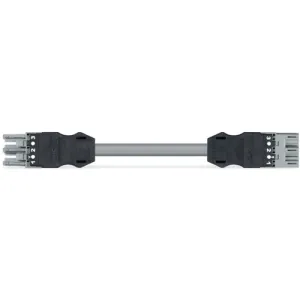

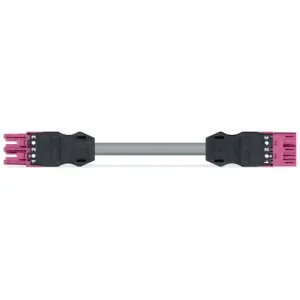

Connection cable, 8 m, socket, 3 pole straight to plug, 3 pole straight, 1.0 mm², 771-9293/015-807
Unit Price (€ / pc.)
33.4866 € *
Standard delivery time from the manufacturer is: On Request
Connecting line, 771-9293/015-807, WAGO
The WINSTA MIDI Connecting line rated current 10 A supports rapid, correct installation. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Due to the built-in test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and costs.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- For automation controllers
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | socket, 3 pole | |
| Connection 1 design | straight | |
| Cable length | 8 m | |
| Coding | B | |
| Cable cross-section | 1.0 mm² | |
| Connection 2 design | straight | |
| Version | connecting line | |
| Connection (2) | plug, 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
