771-9285/216-801 | WAGO

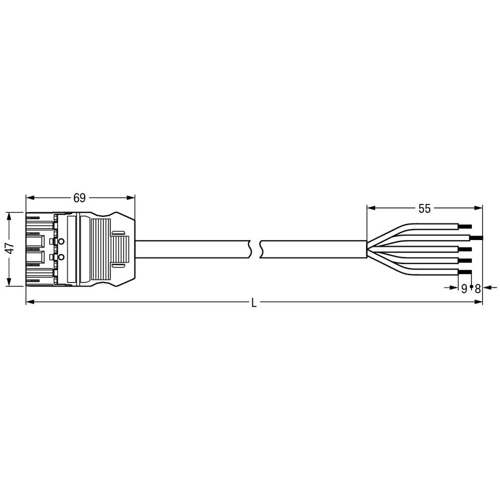

Connection cable, 8 m, plug, 5 pole straight to open end, 1.5 mm², 771-9285/216-801
Unit Price (€ / pc.)
71.1025 € *
Standard delivery time from the manufacturer is: On Request
Connecting line, 771-9285/216-801, WAGO
The WINSTA MIDI Connecting line 5-pole supports fast, reliable installation. This pluggable installation connector can be used when criteria repeat or is distributed on a specific pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With I coding for use in the automation of buildings (lighting control)
- Flexible installation to save space
- Fast, secure installation
Technical specifications
| Connection (1) | plug, 5 pole | |
| Cable length | 8 m | |
| Version | connection line | |
| Cable cross-section | 1.5 mm² | |
| Connection 1 design | straight | |
| Coding | I | |
| Connection (2) | open end |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
