771-8995/218-601 | WAGO

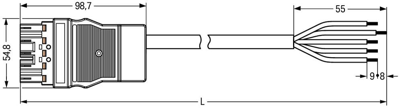

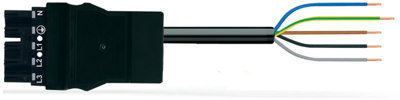

Connection cable, 6 m, plug, 5 pole straight to open end, 4.0 mm², 771-8995/218-601
Connecting line, 771-8995/218-601, WAGO
The WINSTA MIDI Connecting line with protection against mismating allows assembly of fine-stranded and solid conductors. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. This pluggable installation connector can be used for a load of up to 25 A. Thus, it can also be used for high power loads.
The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, more reliable, and error-free. Using this pre-assembled system reduces time spent on assembly and errors during installation at the construction site. Now you can also reduce installation expenses without compromising quality and safety: with fire class E eliminates the need for servicing and prevents unnecessary downtime.
Features
- Effective protection against mismating
- With A coding for use in many general mains applications
- Ready to install and use immediately
- Fast, secure installation
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable cross-section | 4.0 mm² | |
| Version | connection line | |
| Coding | A | |
| Cable length | 6 m | |
| Connection 1 design | straight | |
| Connection (1) | plug, 5 pole |
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
