771-8995/008-501 | WAGO

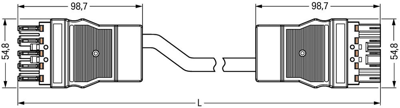

Connection cable, 5 m, socket, 5 pole straight to plug, 5 pole straight, 4.0 mm², 771-8995/008-501
Connecting line, 771-8995/008-501, WAGO
This WINSTA MIDI Connecting line allows fast, efficient, error-free installation in a large number of applications. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This product has a current rating of 25 A - so it is also suitable for powerful loads. With its Push-in Cage Clamp spring pressure connection technology, it achieves time-saving, error-free installation and offers flexibility for meeting various installation requirements.
The cable is pre-assembled with a socket and a plug. The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With A coding for use in a large number of general mains applications
- Quick replacement of defective units during ongoing operation
| Filter | Property | Value |
|---|---|---|
| Connection (2) | plug, 5 pole | |
| Connection 2 design | straight | |
| Cable length | 5 m | |
| Coding | A | |
| Connection (1) | socket, 5 pole | |
| Connection 1 design | straight | |
| Version | connecting line | |
| Cable cross-section | 4.0 mm² |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
