771-8995/008-301 | WAGO

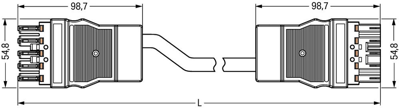

Connection cable, 3 m, socket, 5 pole straight to plug, 5 pole straight, 4.0 mm², 771-8995/008-301
Unit Price (€ / pc.)
41.0788 € *
Standard delivery time from the manufacturer is: 4 Weeks
Connecting line, 771-8995/008-301, WAGO
The WINSTA MIDI Connecting line is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This product has a current rating of 25 A - as a result it is suitable for robust loads.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows fast, secure and, above all, error-free installation of components and cables.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- With A coding for a large number of applications
- Flexible installation to save space
- Convenient installation and commissioning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | plug, 5 pole | |
| Cable cross-section | 4.0 mm² | |
| Version | connecting line | |
| Coding | A | |
| Cable length | 3 m | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Connection (1) | socket, 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
